Place of Origin:
China
Brand Name:
sammipack
Certification:
CE
Model Number:
DBW-250
Video
Video
Double frequency Automatic Biscuit Cookie Mooncake Wrapping Pillow Packing Machine
Application
Applies to masks,towels, wet wipes, disposable toothpaste, toothbrush, disposable hotel supplies, aviation disposable cutlery, multi-row egg rolls, cards, squid, noodles,soft-like, than the material sticky candied fruits, kiwi slice bulk, shapesize irregular items of packaging.
Main performance and structure features
1. Double frequency conversioncontrol, bag length can be set and cut in one step saving time and films.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis , clear failure display.
4. High sensitivity photolelectric eye color tracking ,numerical input of cutting sealing position for extra accuracy.
5. Separate PID control to temperature, suitable for various packing materials.
6. Recoprocating type sealing device, firmer sealing, no wasting in mould sealing cutter.
7. Terminal sealing device, more beautiful bag shape, improving products level.
8. Positioned stop function,without sticking knife or wasting film.
9. Simple driving system, reliable working, convenient maintenance.
10. All control is realized through software,easy for function adjustting, and technical upgrade.
Technical Parameter
|
Type
|
DBW—250B
|
DBW—350B/D
|
DBW—350B
|
DBW—350D
|
|
Film Width
|
MAX.250mm
|
MAX.350mm
|
||
|
Bag length
|
65-90mm or 120—280mm
|
90mm—220mm
|
56—190 or120—280mm
|
90—120 or150—330mm
|
|
Bag width
|
30—110mm
|
50—160mm
|
||
|
Product height
|
MAX.40mm
|
MAX.55mm
|
MAX.40mm
|
MAX.60mm
|
|
Film roll diameter
|
MAX.320mm
|
MAX.320mm
|
||
|
Packing speed
|
40—230 pack/min
|
MAX.320mm
|
||
|
Power
|
220V50/60HZ2.6KW
|
220V50/60HZ2.6KW
|
||
|
Machine size
|
(L)3770×(W)670×(H)1450mm
|
(L)4020×(W)800×(H)1450mm
|
||
|
Machine weight
|
800Kg
|
900Kg
|
||
Machine configuration
Electrical parts list
| No. | Name | Model | Qty | No. | Name | Mode | Qty | ||
| 1. | PLC | 16 | panasonic | 1 | 7. | Motor | 370W | 1 | |
| 2. | inverter | 0.4KW | panasonic | 1 | 8 | Motor | 550W | 1 | |
| 3. | inverter | 0.55KW | Panasonic | 1 | 9. | cutter | China | 2pcs | |
| 4. | Screen | Wecon | 1 | 10. | Temperature display | China | 2 | ||
| 5. | Relay | 24V | omron | 1 | 11. | electric eye | China | 1 | |
| 6. | Switch | Mingwei | 1 |

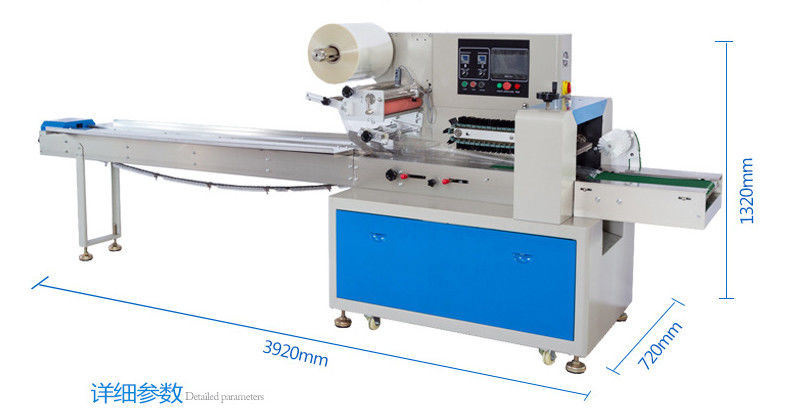

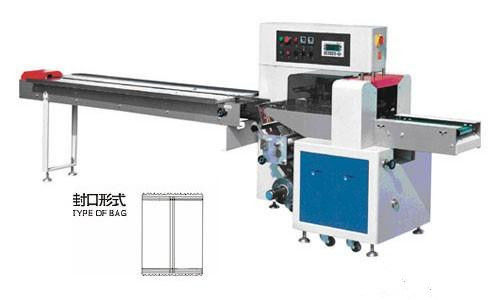

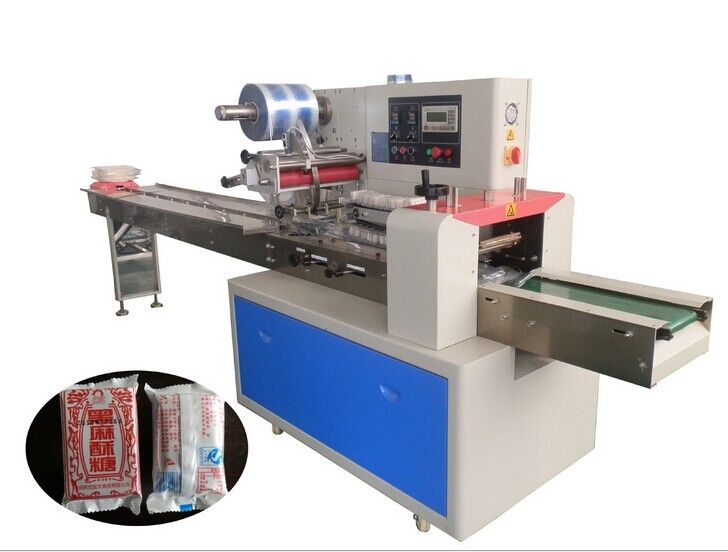

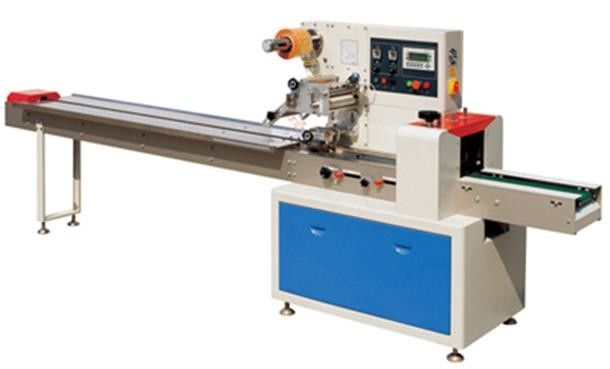

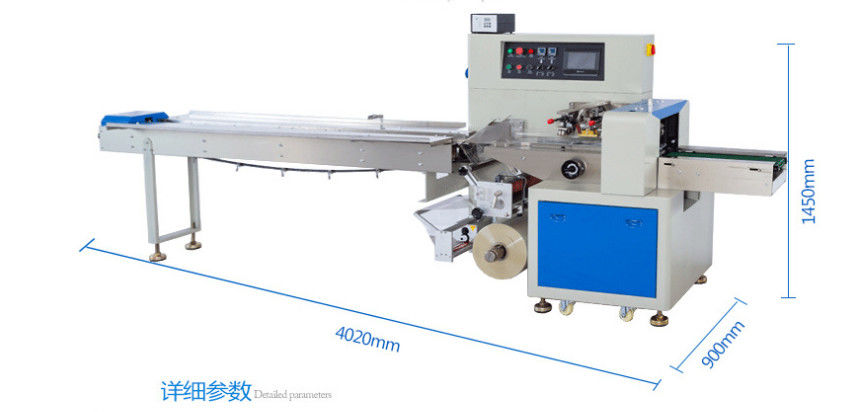

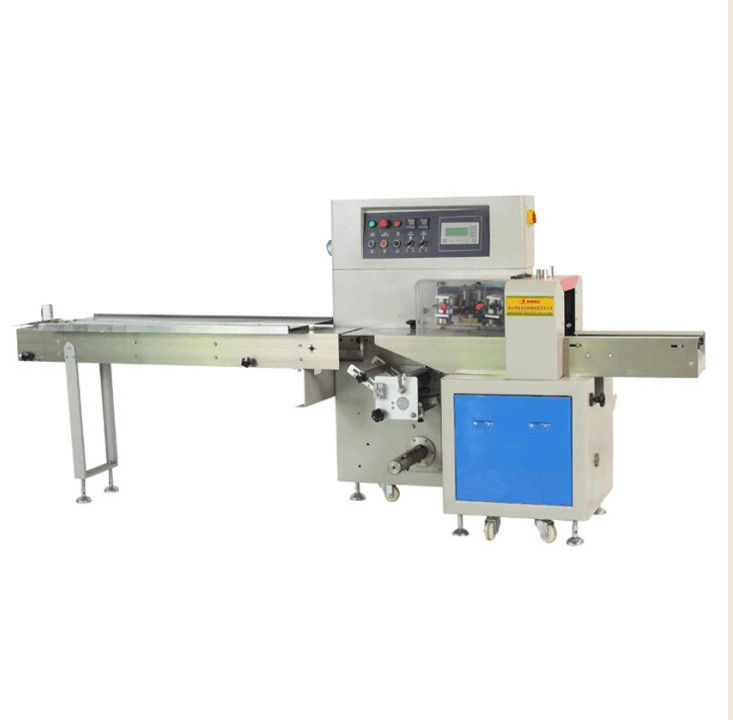

Machine pictures
Packaging & Delivery
1, Packaging Detail: standard export wooden case package or carton.
2, Leading time: 1-3 days
3, Delivery time: depend on ways of shipping
Shipping & payment
1,ways of shipping:
1) Small machine will shipped by express (DHL, EMS, FedEx and so on) or air
2) Big order and big machine shipped by sea (FOB Shenzhen/CIF)
2, payment methods
We accept LC, TT, West Union , Papal or MoneyGram
1) Any inquiries will be replied within 12 hours.
2) Quality of products will be strictly checked and every machine will be test to confirm whether it works well before packing.
3) All the machines have 1 year warranty and life time maintenance.
4) We have professional engineers , after-sales staff and a high-quality sales team to service you.
5) We have a sales team who are good at English to ensure zero communication barriers.
Dongguang Sammi Packing Machine Co.,Ltd was found in 2010, we are the professional manufacturer of
packaing machinery,specialized in filling machine, capping machine, coding machine, sealing machine,labeling
machines, packing machines etc,widely apply in food,cosmetic, pharmacy, beverage and chemical industries.
With expertise and inside knowledge of packaging machinery, we provide our clients with additional value by
supplying top quality, high efficient packaging equipment base on competitive price.
Our product obtains high reputation from customer. They sell well in mainland China, as well as many countries
in Europe, America, Southeast Asia, the Middle East, because of high quality, lower prices, fast speed delivery
and satisfying services.
