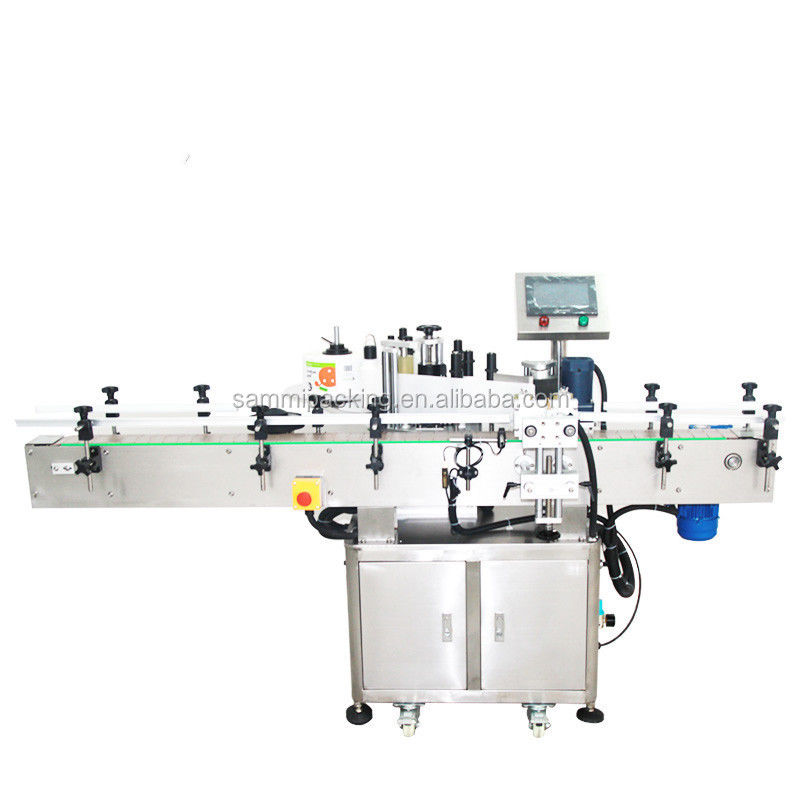

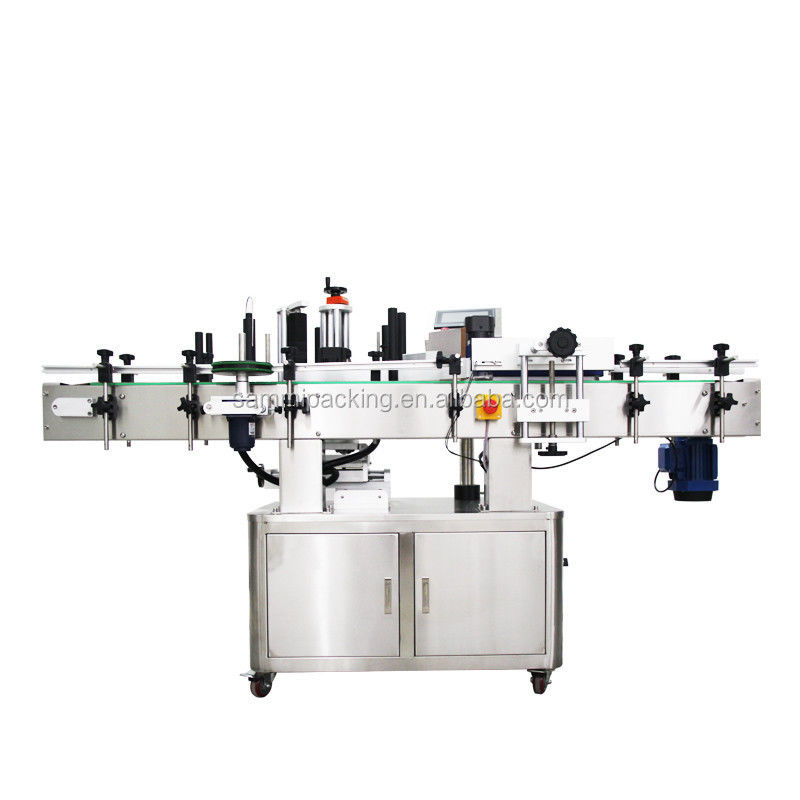

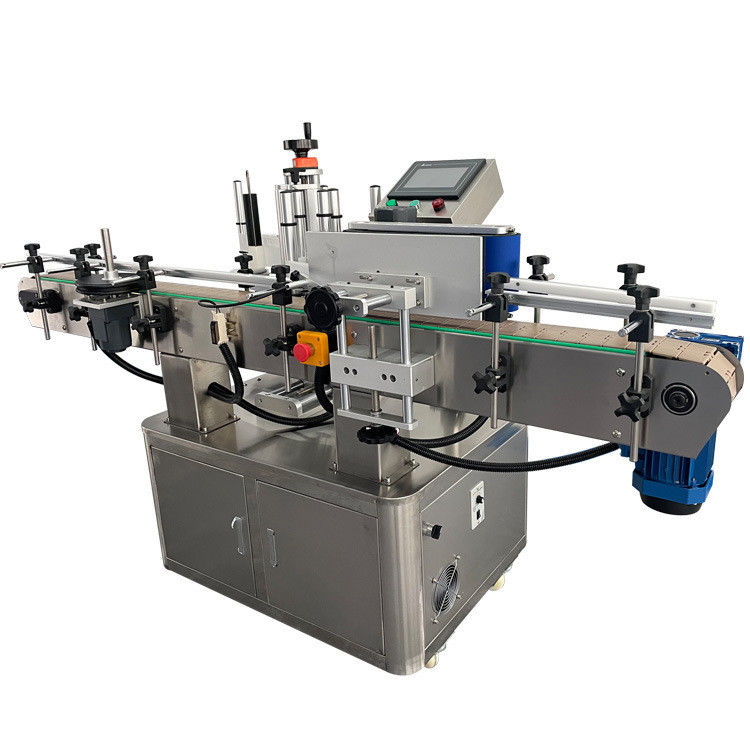

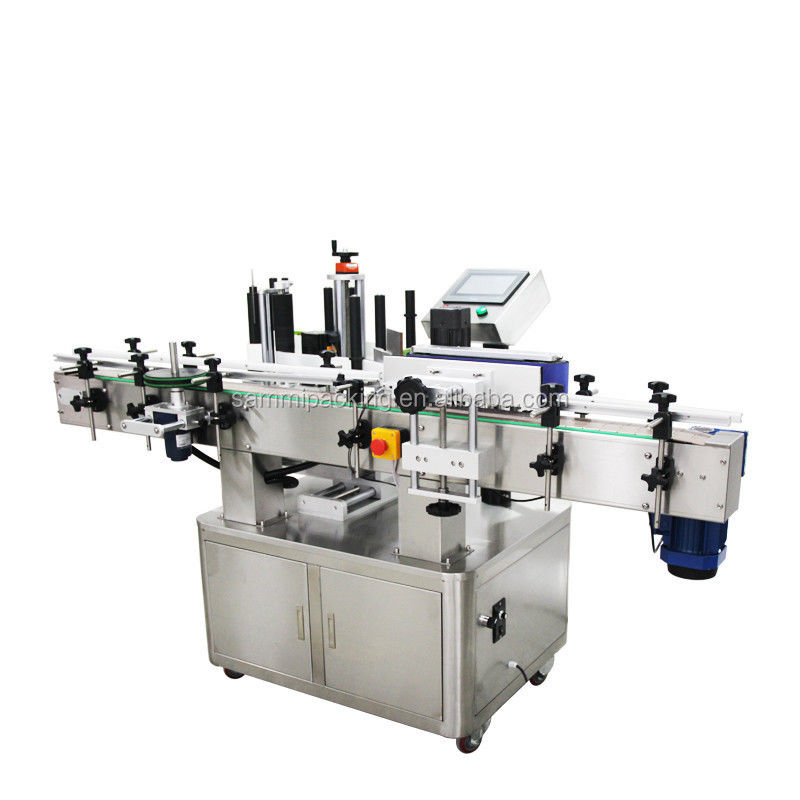

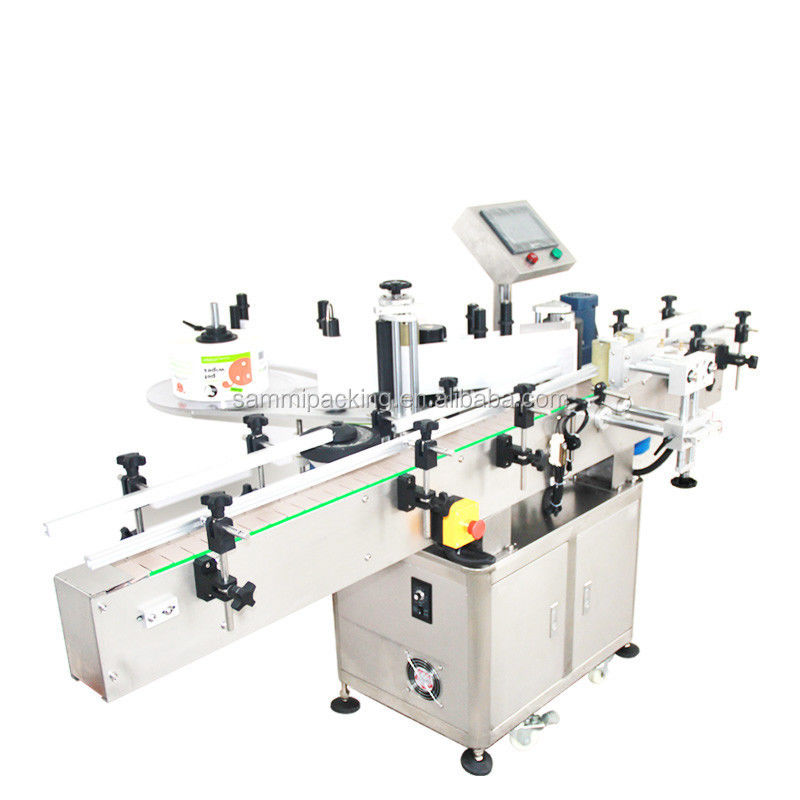

New type Automatic Round Bottle Labeling Machine
Product Description
This full automatic round bottle labeling machine is designed for single side label.It can transfer the bottle,separate stickers and label them on bottles precisely.Equipping with date printer to print production date is also available.Automatic labeling machine help you improve working efficiency.
Apply for a variety of round bottle, small taper round bottle full roll or half roll labeling, such as round food jar, cosmetics round bottles, medicine bottles;
1.This equipment used PLC micro-computer software control system, which has powerful memory function,touch screen opeartion.
2.It is simple and quick operation. The label controlled by mutual inductance stepper motor. It ensures that the speed of sending label is sames as the imported inverter, to ensure that the machine's stability and reliability.
3.Stainless steel frame construction and components are standard;
4.Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling;
Machine part list:
Use servo motor system
Touch screen
Import MITSUBISHI PLC
Frequency Invertor: Taiwan brand
Bottle inspection bottle photoelectric :South Korea Otto Nikos
Conveyor motor bottle pump motor: RV type
Technical parameters:
|
Labeling precision |
± 1.0 mm |
|
Scope of applicable labels |
height of 10-150 (mm) length of 15-200(mm) |
|
Bottle diameter and height |
Diameter 10-100mm,Bottle height:25-350mm |
|
Label roll diameter |
Outer Max 300mm,inner dia:75mm |
|
Production capacity |
50~100 bottles/min |
|
Rated voltage |
220V/50Hz |
|
Total power |
500W |
|
Dimensions |
2000×1300× 1500(mm)(length× width× |
|
Machine weight |
200Kg |
The machine can be customized according to customer’s special requirement....
