Electric Driven Steam Tunnel Heat Sleeve Shrink Labelling Packaging Machine for Packaging

Electric Driven Steam Tunnel Heat Sleeve Shrink Labelling Packaging Machine for Packaging

Steam Tunnel Shrink Labelling Packaging Machine

Electric Driven Shrink Labelling Packaging Machine

Heat Sleeve Shrink Labelling Packaging Machine

Place of Origin:

Guangdong, China

Brand Name:

SAMMIPACK

Contact Us
Request A Quote
Product Details
Application:
Beverage, Commodity, Food
Packaging Type:
Belt, Foil
Packaging Material:
Wood
Automatic Grade:
Semi-automatic
Driven Type:
Electric
Voltage:
220V/50HZ/HZ
Dimension(L*W*H):
1520x400x1250mm
Weight:
68 KG
After-sales Service Provided:
Online Support, Video Technical Support
Warranty:
1 Year
Key Selling Points:
Long Service Life
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
Motor, Other
Type:
Steam Shrink Tunnel Machine
Tunnel Size:
1000x100x320mm
Max.Packing Size(mm):
80 X 290mm
Conveyor Motor:
AC90W/220V
Shrink Film:
POF,PVC,PP
Conveyor Speed:
0-10m/min
Power:
9KW
Max Loading Weight:
15kg
Function:
Label Shrink Packing
Highlight:

Steam Tunnel Shrink Labelling Packaging Machine

,

Electric Driven Shrink Labelling Packaging Machine

,

Heat Sleeve Shrink Labelling Packaging Machine

Payment & Shipping Terms
Price
$900.00/sets 1-4 sets
Product Description

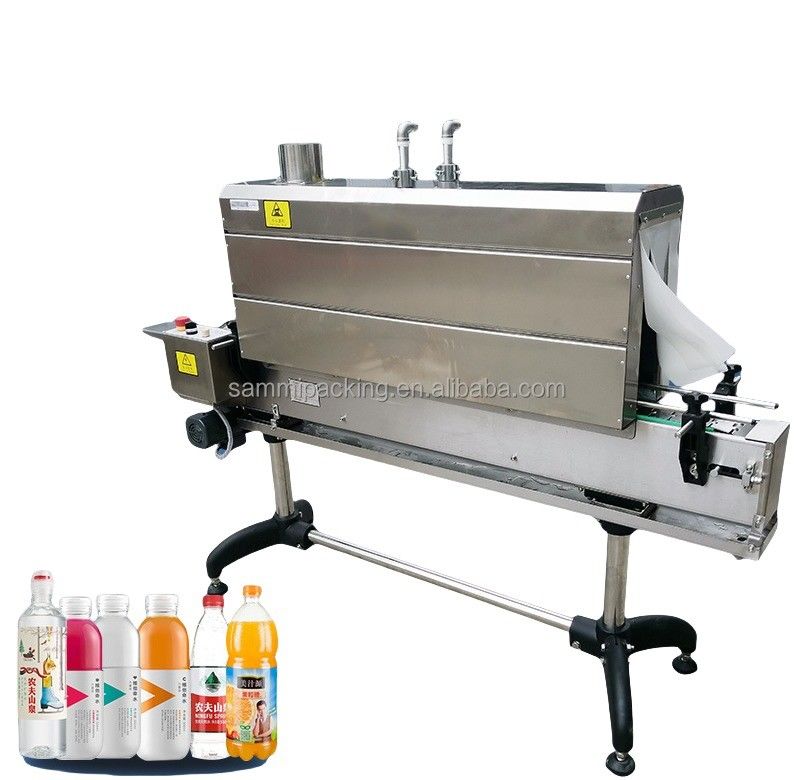

BS-1135 steam label shrink machine sleeve shrink tunnel packing machine



Product Description



Application:



Itis mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label either on the top, in the middle, at bottom of bottom or wrapping the whole bottle is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.

Feature

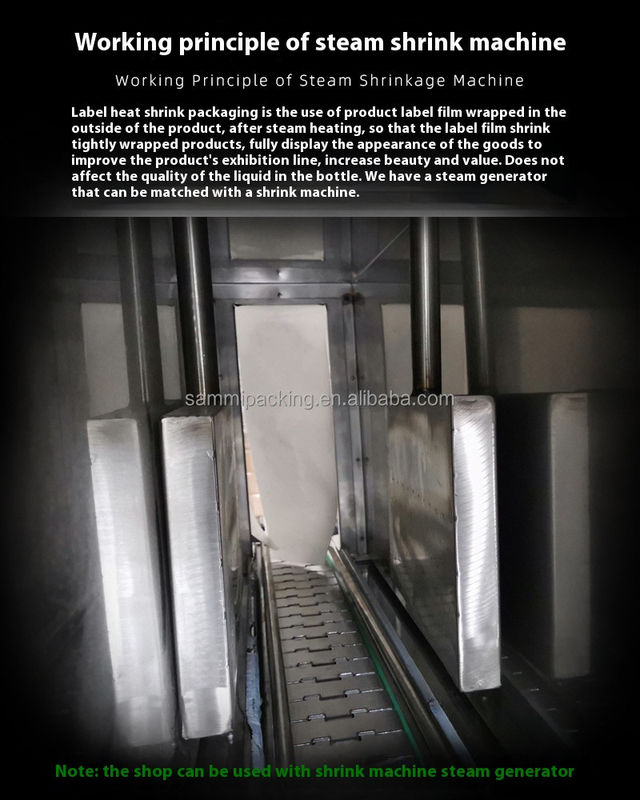

1.This bottle label steam shrink tunnel is our new-developed shrink machine. It adopts steam as heat source,
and has features of high speed, even heating, no wrinkle, adjustable power and perfect shrink effect.
2. This not only saves energy, but also accords to international security standard. Whole machine adopts water-proof design, and S/S water receiver is mounted in the bottom in order to collect condensed water. It is easy to operate and maintain, and widely applied in the industry of mineral water, pure water, carbonated drink and tea etc.
3. the bottle label steam shrink packing machine has advantage of high efficiency in energy-consumption, simple operation and easy adjustment. Achieve perfect shrink effect with lowest power consumption. Any shape bottle is able to reach nice-looking shrink effect after simple adjust.



Specification



Model
BS-1135
Volt
220V 50/60Hz
shrink tunnel width
110mm
max suitable width
100mm
max suitable height
29cm
speed
5000-7500BPH
Steam pressure
0.1Mpa
steam consumption
8kg/H
Shrink temperature
75-85℃
Suitable material
PVC PP PE POF

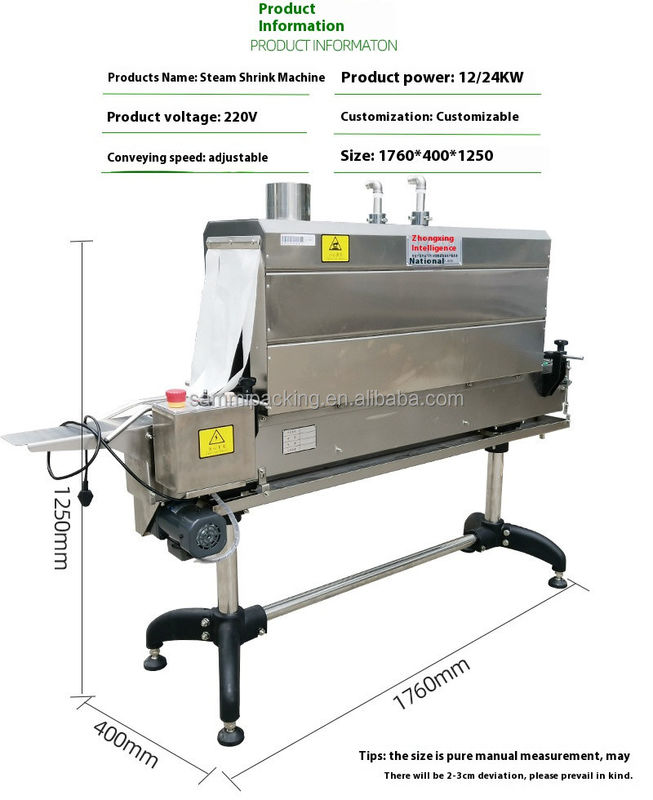

Machine size
1760x450x125mm
Weight
168kg
