Place of Origin:
Guangdong, China
Brand Name:
SAMMI
Video
Video
Application:
Suitable for different size of adhesive label or adhesive film on all kinds of round bottle,High accuracy and high speed dispensing & labeling.
Suitable range: Round bottle, Round tank, Round barrel to self-adhesive labeling.
It is used in PET bottle, plastic bottle, glass bottle, Metal bottle and so on round bottle etc.
Product discription:
1, Small structure takes up less space and easy to move and load.
2, Good labeling precision and stability; Neat, no wrinkle, no bubble.
3,It can achieve circumferential position labeling and non-position labeling easily
4,It satisfy the circumferential position labeling and non-position labeling on diameter between 15-120mm bottles.
5, It is easy to use and adjust. The new workers can use or adjust it easily after simple training.
Advantages:
1.Paper tray rotation can be adjustable, can adjust the tightening screw according to the actual needs, simple and convenient.
2.Quality rubber roller, running more smoothly,can fixed the bottle body,label more convenient and improve the working efficiency.
3.The mechanical handle is with ergonomic design, comfortable grip.
4.Simple double positioning device, positioning bottle body and label, convenient in operation.
The mechanical handle is with ergonomic design, comfortable grip. Paper tray rotation can be adjustable, can adjust the tightening screw according to the actual needs, simple and convenient.
Quality rubber roller, running more smoothly,can fixed the bottle body,label more convenient and improve the working efficiency.
Technical parameters:
| Name | Manual Handy Round Bottle Label Machine |
| Accuracy | ±0.5mm |
| Bottle Diameter | 20-80mm |
| Label Speed | 10-30pcs/min |
| Lavel Roll Inner Diameter | ≥75mm |
| Label Roll Out Diameter | ≤150mm |
| Label Width | 20-80mm |
| Label Length | 55-140mm |
| Bottle height | <150mm |
| Machine Size | 460*250*210mm |
| Machine Weight | 10kgs |

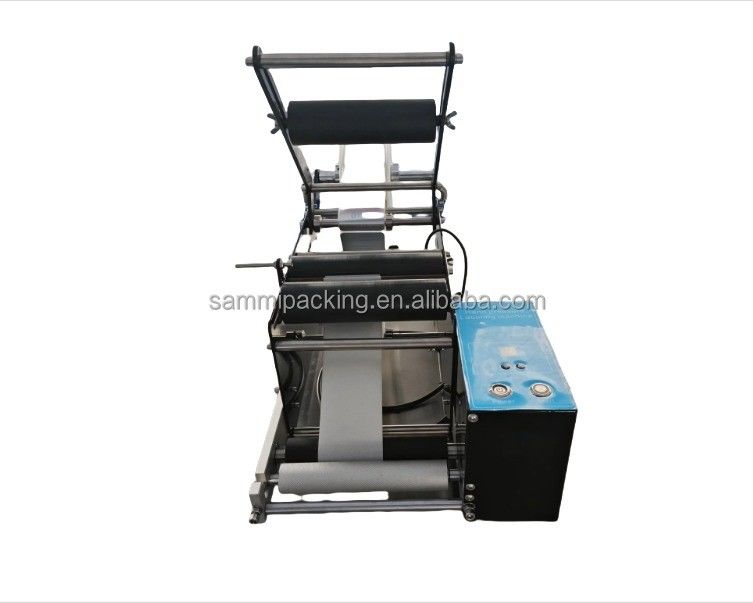

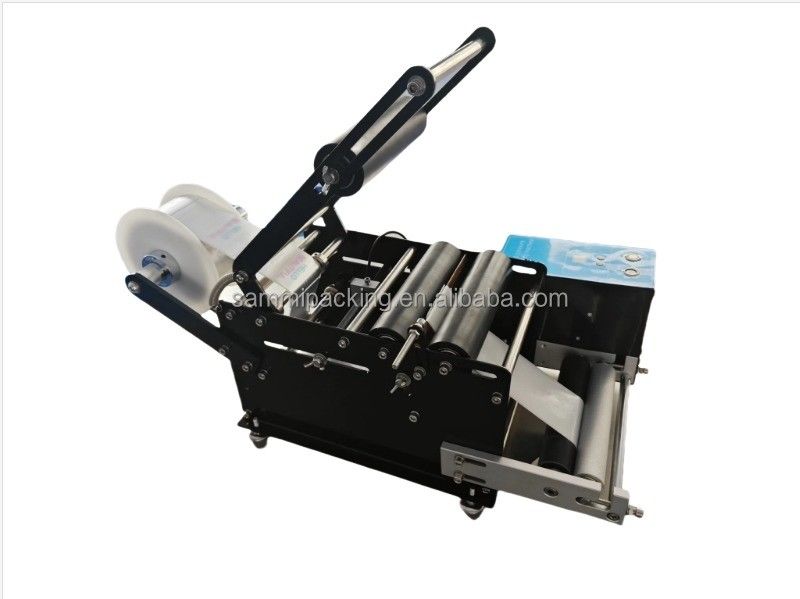

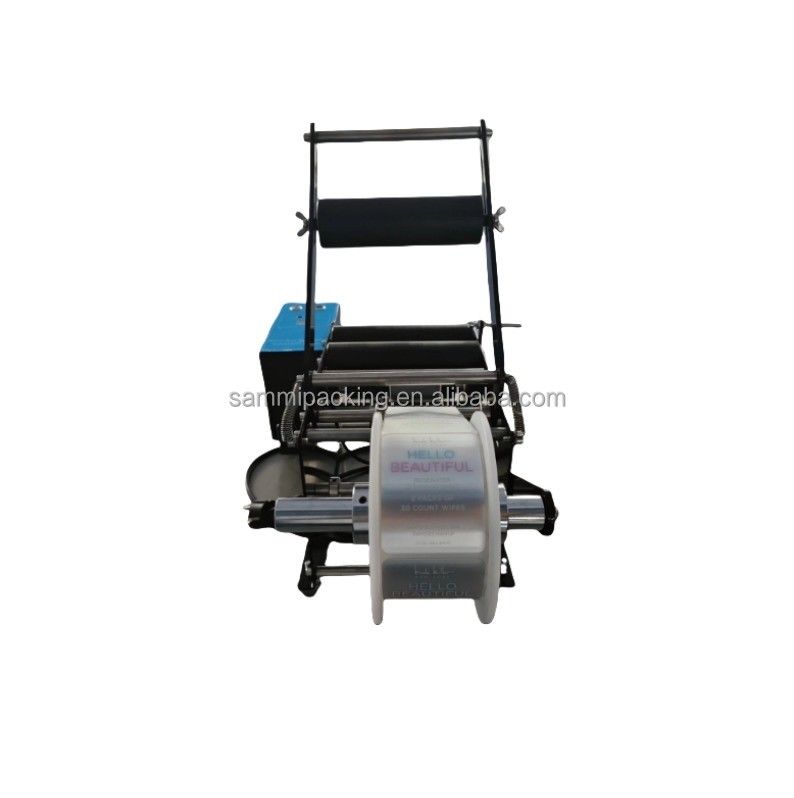

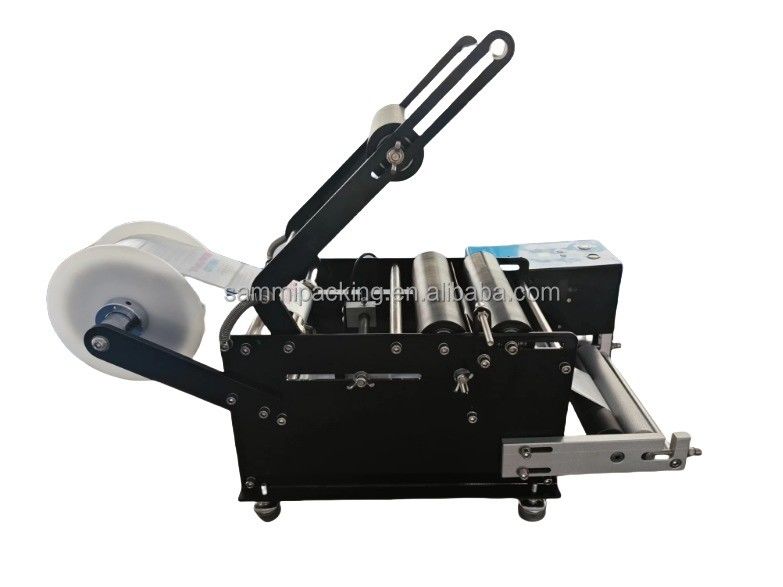

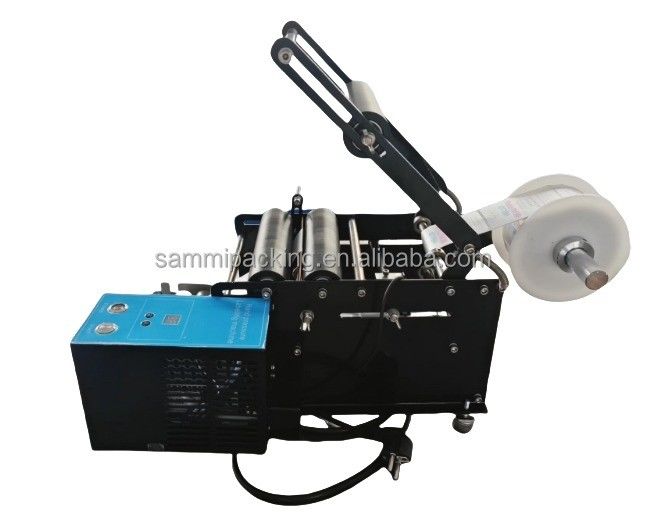

| Product Display (small round bottle labeling machine ) |
