Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil

continuous electromagnetic induction sealer

PET Bottle Caps electromagnetic induction sealer

Aluminium Foil continuous induction sealer

Place of Origin:

Guangdong, China

Brand Name:

SAMMIPACK

Request A Quote

Continuous Electromagnetic Induction Sealer For PET Bottle Caps And Aluminium Foil

Product Details

Application:

Food, Beverage, Commodity, Chemical, Other

Packaging Type:

Bottles

Packaging Material:

Wood

Automatic Grade:

Semi-automatic

Driven Type:

Electric

Voltage:

220V, 110V, 220V/50HZ/60HZ, 220V/50hz/60hz

Dimension(L*W*H):

50*40*150CM

Weight:

150 KG

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

PLC, Motor

After-sales Service Provided:

Video Technical Support, Online Support

Model:

LGYS-2200

Sealing Diameter:

20-150mm

Bottle Height:

20-600mm

Sealing Speed:

6-18m/min

Work Type:

Continuous Conveying

Cooling Way:

Air Cooling

Material:

Stainless Steel + Aluminum

Power:

4500w

Highlight:

continuous electromagnetic induction sealer

PET Bottle Caps electromagnetic induction sealer

Aluminium Foil continuous induction sealer

Payment & Shipping Terms

Price

$1,400.00 - $2,300.00/sets

Portable Induction Cap Sealer Aluminium Foil Sealing Machine 20-85mm 342915MM Size

Get Best Price

Video

800A All In One Induction Sealing Machine , Aluminium Foil Bottle Cap Heat Sealer

Get Best Price

Video

Aluminium Foils Induction Sealer For Glass Jar Nozzle Cap DGYF-500B

Get Best Price

Video

DGYF-500B Nozzle Cap Induction Sealing Machine Aluminum Foil Hand Held

Get Best Price

Contact Now

Product Description

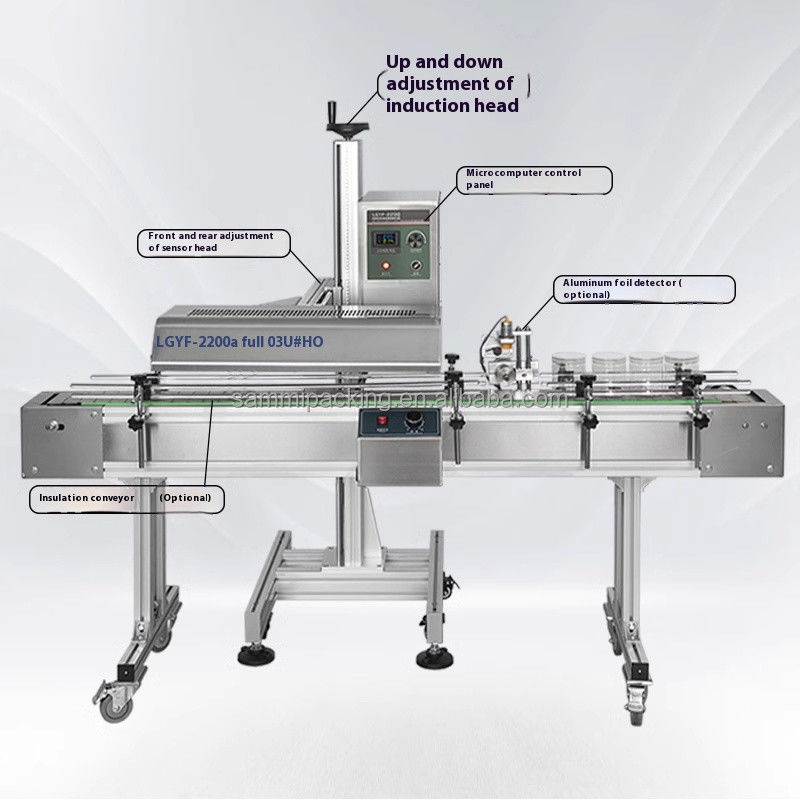

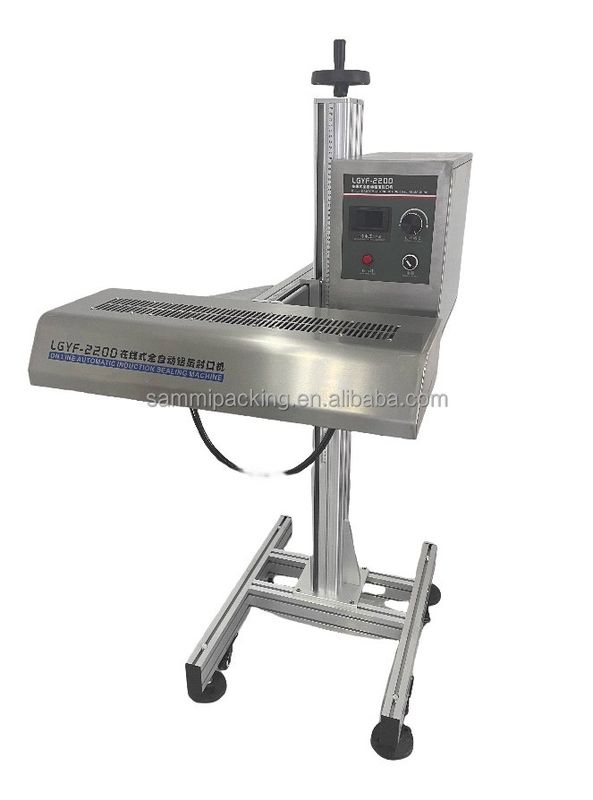

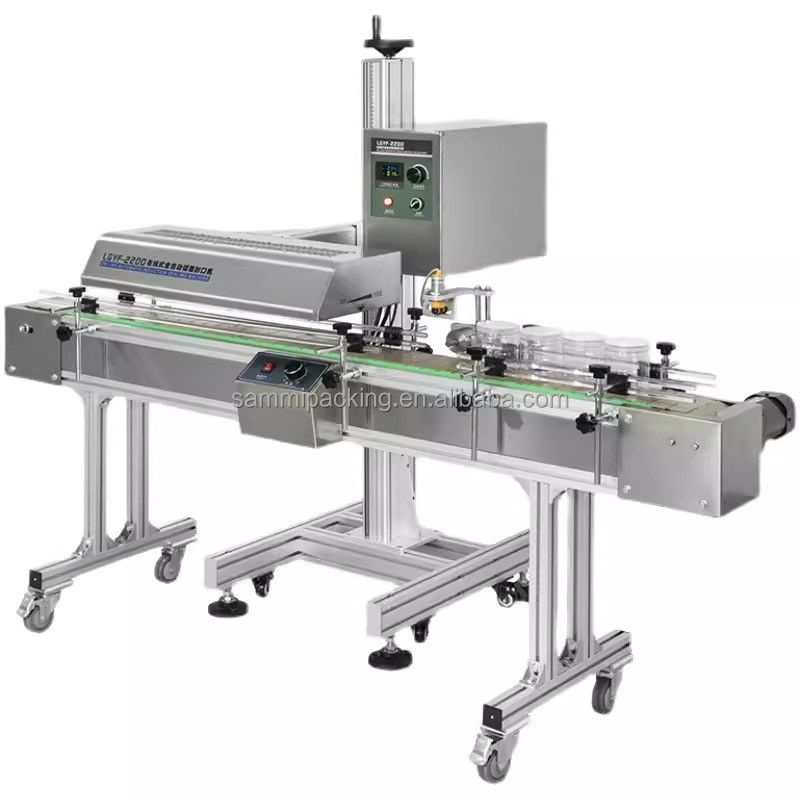

High quality LGYF-2200 Automatic induction sealing machine

Product description

This series machine use transistor circuit control, and it has the characteristics of low cost, simple operation and easy to use. Mainly used for bottle with threaded plastics, glass bottle of bottle etc. those non-metal induction sealing operation. It’s suitable for large and medium sealing job. Batch continuity, but isn’t suitable for acid. High humidity and dust more harsh environments (such as pesticides. drinks etc.) for a long time. These series machines are suitable for single homework, do not use in line connected.

Application

Suitable for sealing flat round screw cap on glass bottles or plastic bottles. This induction sealing machine is not suitable for metal containers, cover without screw. And the cap dia. is between 20mm-180mm for option. It's suitable for the big production factory.

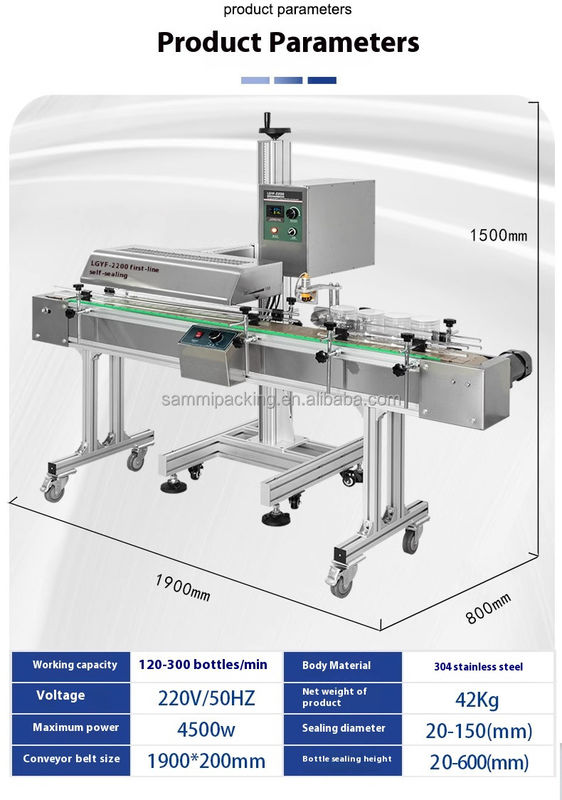

Specification

Model	LGYF-2200A	LGYF-2200B
Voltage	220V, 50/60Hz
Power	2300W

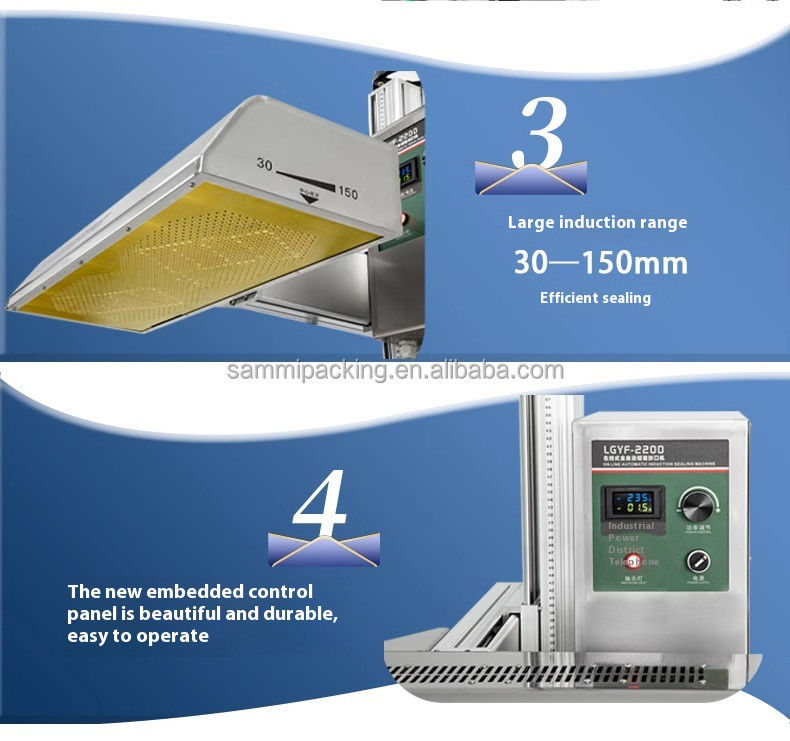

Sealing Diameter	φ20~φ60MM	φ30~φ150MM

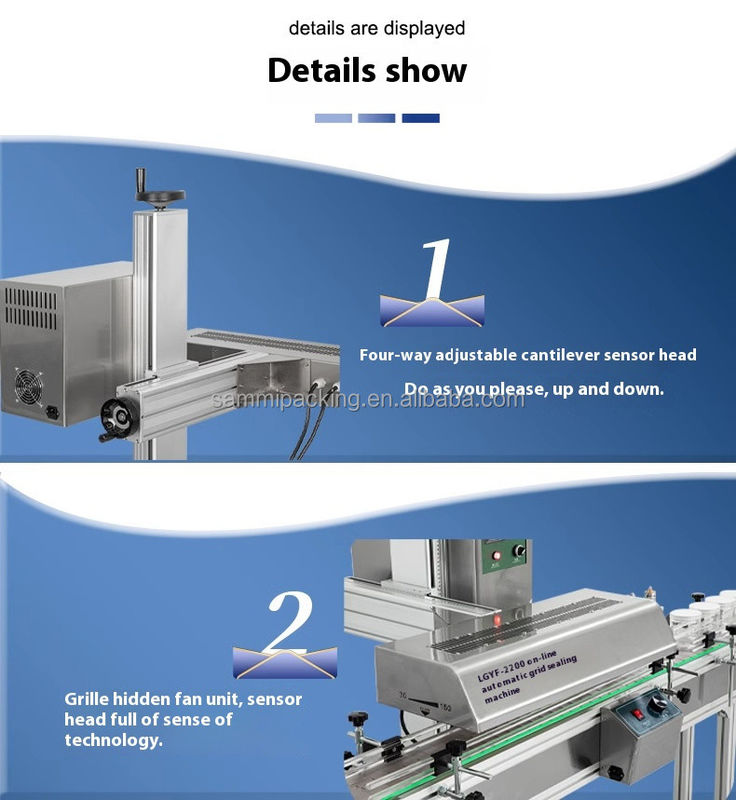

Sensor Head Adjustment Range	Height: 0-800MM ; Front and Rear: 0-260MM
Sealing Speed	5~18M/MIN
Machine Size	7509501600MM
Weight	52KG
Conveyor Size	1200MM Length * 200mm Width
Chassis Material	304 stainless steel & aluminum profile
Working Mode	Continuous sealing
Cooling Method	Air cooling
Control Circuit	Transistor digital circuit
