Place of Origin:
Guangdong, China
Brand Name:
SAMMI
Video
Video
This series machine use transistor circuit control, and it has the characteristics of low cost, simple operation and easy to use. Mainly used for bottle with threaded plastics, glass bottle of bottle etc. those non-metal induction sealing operation. It’s suitable for large and medium sealing job. Batch continuity, but isn’t suitable for acid. High humidity and dust more harsh environments (such as pesticides. drinks etc.) for a long time. These series machines are suitable for single homework, do not use in line connected.
Suitable for sealing flat round screw cap on glass bottles or plastic bottles. This induction sealing machine is not suitable for metal containers, nozzle cap,cover without screw. And the cap dia. is between 20mm and 80mm or 40-120mm for optonal. It's suitable for the big production factory.
1. Stainless steel construction for using in harsh environment and easy for clean and maintenance.
2. Fast speed for bulk production.
3. Conveyor speed and sealing speed can be adjusted.
4. Easy to use, no special train on operator required.
5. Height of sealing line adjustable to accept wide range of bottle heights.
6. Electric current overload, voltage overload and output overload protection.
7. Air Cooling System eliminates all water cooling pipes, pumps, filters and flow switches.
| Model | LGYF-6000A | LGYF-6000H |
| Voltage | AC 220V±10% 50HZ | |
| Power | 1200 W | 1800W |
| Current work | ≤8 ( A ) | ≤9 ( A ) |
| Work Type | continuous conveying | |
| Cooling Way | Air cooling fan | |
| Type | Tabletop | |
| Machine body material | stainless steel + aluminum | |
| Sealing diameter | Φ20~Φ80 ( mm) | Φ40~Φ120 ( mm) |
| Bottle height | 20~280 ( mm ) | 20~280 ( mm ) |
| Sealing speed | 0~10 ( m/min) | 0~10 ( m/min) |

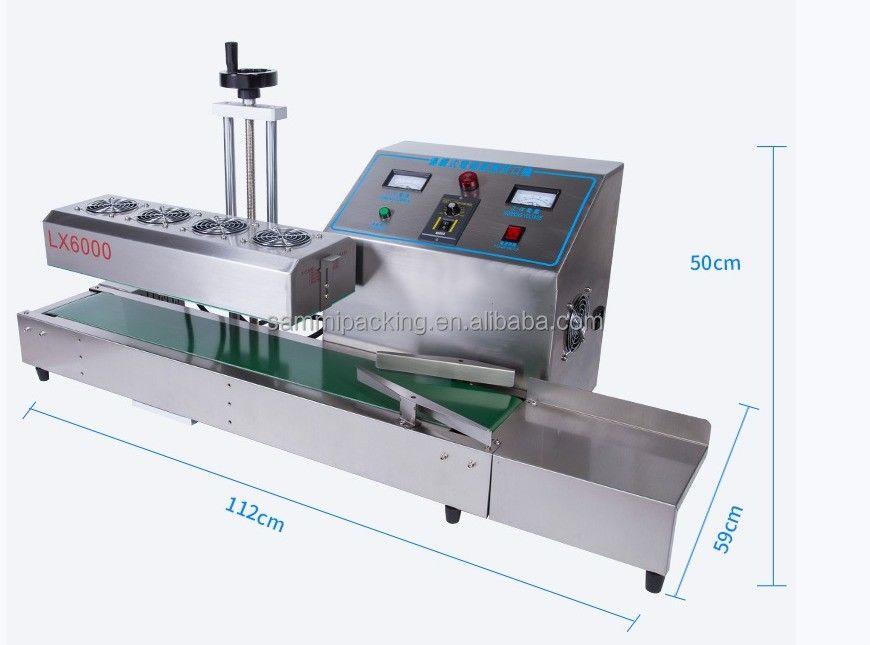

| Dimension (L x W x H) | 1120×59×45 ( cm ) | 1120×59×50 ( cm ) |
| Net Weight | 38( kg ) | 46 ( kg ) |
