LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing

LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing

Nitrogen Gas Flushing Continuous Sealing Machine

Continuous Sealing Machine With Gas Flushing

Place of Origin:

Guangdong, China

Brand Name:

sammipack

Certification:

CE

Model Number:

LF-1080B

Contact Us
Request A Quote
Product Details
Type:
SEALING MACHINE
Max Speed:
10m/min, 14m/min, 16m/min
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Home Use, Food & Beverage Shops, Other
Showroom Location:
None
Speed:
20-50 Bottles/min
Application:
30-330MM
Clutch:
Bags, Film, Foil, Pouch, Stand-up Pouch
Packaging Material:
Plastic, Wood
Air Pressure:
0.2-0.6Kgf/cm
Driven Type:
220V 50hz/110v 60hz
Voltage:
220V 50HZ/110V/60HZ
Dimension(L*W*H):
1020*480*1065MM
Weight:
84 KG
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
Name:
Continuous Band Sealer With Air Filling
Sealing Width:
0-12mm(can Be Adjustment)
Film Thickness:
0.02-0 .80 Mm
Function:
Air Suction, Gas Flushing, Bag Sealing, Printing
Max Load Weight:
<3kg
Temperature Range:
0~300
Speed:
0~12m/min
Local Service Location:
None
Marketing Type:
New Product 2020
Highlight:

Nitrogen Gas Flushing Continuous Sealing Machine

,

Continuous Sealing Machine With Gas Flushing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negociate
Packaging Details
wooden carton
Delivery Time
1-3 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000pcs per month
Product Description

Factory Direct Sales LF1080 Automatic Continuous Vacuum Sealing Machine With Nitrogen Gas Filling Flush Sealing Machine



         LF1080 Nitrogen gas flushing continuous band sealer sealing machine with printing

LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing

This continuous sealing machine with nitrogen filling is based on the widely absorb essence of similar foreign products and vacuum machine .according to the latest requirement of market to design the new model with send, vacuum, inflatable (such as nitrogen or other gases), seal, code, in one set, continuous sealing and packing machine

This vacuum sealing machine is simple and novel structure, beautiful appearance, complete function, high degree of automation, can greatly reduce the labor intensity of the operator.



Different function of LF-1080 model:



LF1080A is a continuous vacuum sealing machine. The machine has two functions: vacuum and sealing. The workflow is vacuum - sealing - printing.


LF1080B is a continuous vacuum/pneumatic sealing machine. The machine has three functions: vacuum, inflation and sealing. The workflow is vacuum-inflatable-sealing-printing.

LF1080C is a continuous gas flushing sealing machine, which has the functions of inflating and sealing. Workflow is inflatable - sealing - printing.


Machine features

1.Thicker and wider heating block & cooling block to ensure the quick and perfect sealing.
2.High precision processed driving wheel, much beautiful.
3.High-quality solid rubber tensioning knob, wearproof.

4.Unibody gear box, flank fixed, more steady.
5.High-quality polyformaldehyde gear with high- strength injection molding, Running more smooth and low noise.
6.Patent to replace the sealing belt, which is easy and convenient.
7.Shield on the machine to ensure the safety of the operator.
8.Conveyor can be easily adjusted up, down, ahead or back according to the size of the products.
9.Elegant panel, easy operation, variable speed conveyor.
10.Can with the gas filling ,the filling time is adjustable.
11.The new choice of the vacuum pump to ensure the high degree of vacuum.
12."AirTac" filter can prevent the products (such as small granule ,liquid ) into the vacuum pump.
13.The height is adjustable ,tilt degree Max with 15 degrees.





Technical Specification



Model
LF1080A
LF1080B
LF1080C
Voltage
110V/220V 50HZ/60HZ
Power
875W
1400W
1400W
Conveyor Belt Speed
0-12M(min)


Sealing width
12MM
Temperature control range
0-300℃
Maximum thickness of single layer film
0.08MM
Maximum load on conveyor belt
3kg

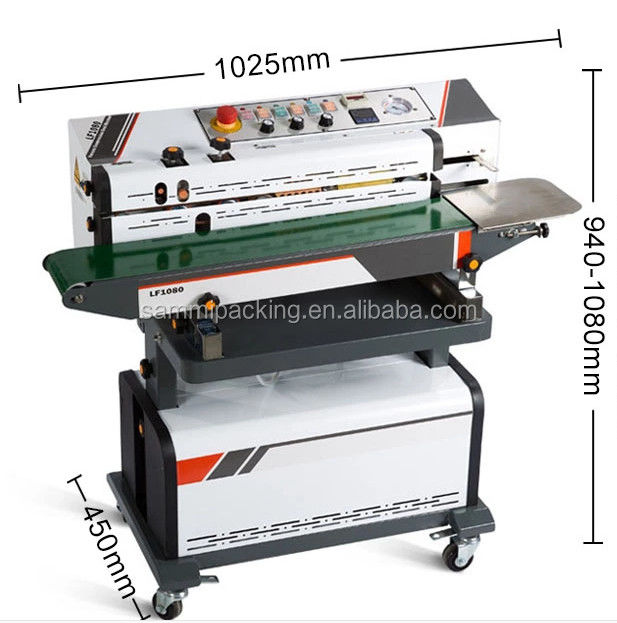

Machine size
1025*450*1080MM
Machine weight
85KG
86KG
85KG





Data parameters of sealing materials
Name and structure of materials
Temperature
Speed(m/min)
Strength(kg/cm)
Polyester/Lead/Polypropylene Composite Film 14/16/20
220-260℃
7.2
2.9
Polyester/Polypropylene Composite Film 6/160
175-200℃
3.5
2.46
Polyester/Glass Paper Composite Film 45/30
160℃
5.0
0.18
Polyethylene film
130-150℃
6.0
0.38

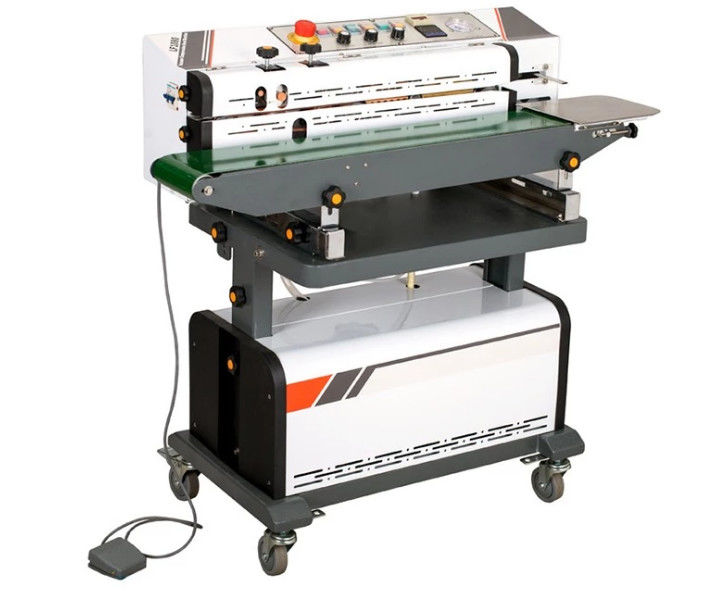

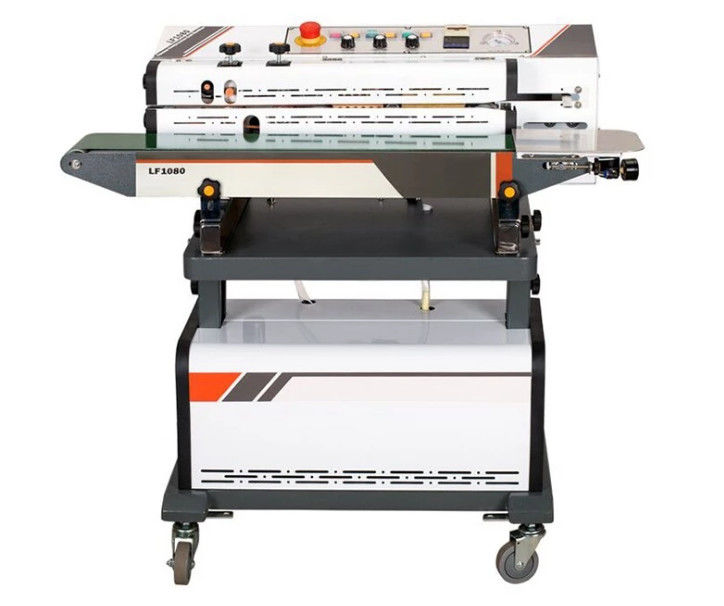

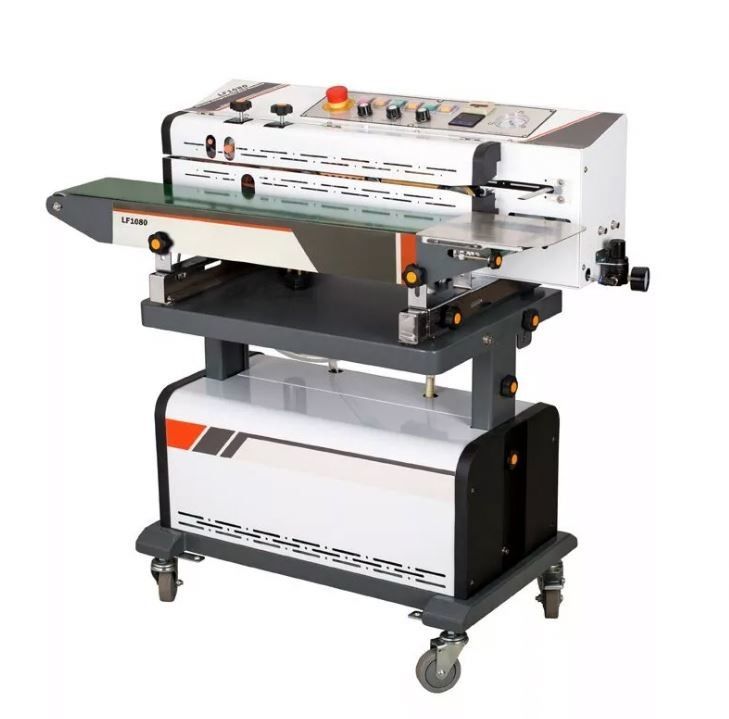

Machine display:





LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 0LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 1LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 2LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 3LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 4LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 5









 LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 6LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 7LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 8

LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 9LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 10LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 11LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 12LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 13

LF1080 Nitrogen Gas Flushing Continuous Sealing Machine With Gas Flushing And Printing 14
