Place of Origin:
Guangdong, China
Brand Name:
sammipack
Certification:
CE
Model Number:
OH-188
|
Functional parameters:
Printing fonts |
High definition spray print font or dot matrix font; entity and dot matrix font can be mixed edited; |
|
Number of Printing Lines |
The number of rows can be chosen within 25.4mm, and the font with the height of 1mm to 25mm can be sprayed. |
|
Special functions |
Flash spray, strong spray, movablebar code, movabletwo-dimensional code, etc. |
|
Spray Printing Content |
Text, counter (changeable), time and date (changeable), bar code (changeable), two-dimensional code (changeable), picture, etc. |
|
Machine System |
Operating System of Thermal Foaming Printer |
|
Spray Printing Speed |
The maximum printing speed can reach 120 meters per minute, and the printing speed does not change with the increase of the number of rows; the maximum resolution is 600 DPI |
|
Operating interface |
Humanized operation of the english interface, including the english font; English menu; Easy to operate: canachieve the effect of operation |
|
Spray Printing Material |
It can be sprayed on metal, plastic, wood, aluminium platinum, carton, building materials, electronic products and other surfaces. |
|
Ink Consumables |
Use environmentally friendly fast-drying ink or water-based ink, without adding solvents, pollution-free, without external air source or built-in air pump |
|
Communication Interface |
Through the USB interface,the U disk uploads the required picture LOGO to the machine, upgrade program and so on. Contact switch, pedal switch, sensor interface and synchronizer interface.It can set three induction trigger signals in thesystem: sensor induction, synchronizer induction, sensor and synchronizer mixing. |
Note : It can choose different printing height 12.7mm or 25.4mm ,OH-288 max print height is 25.4mm, if you need print height 12.7mm ,pls order this model OH-188.
OH-188 Inteligent inkjet printer

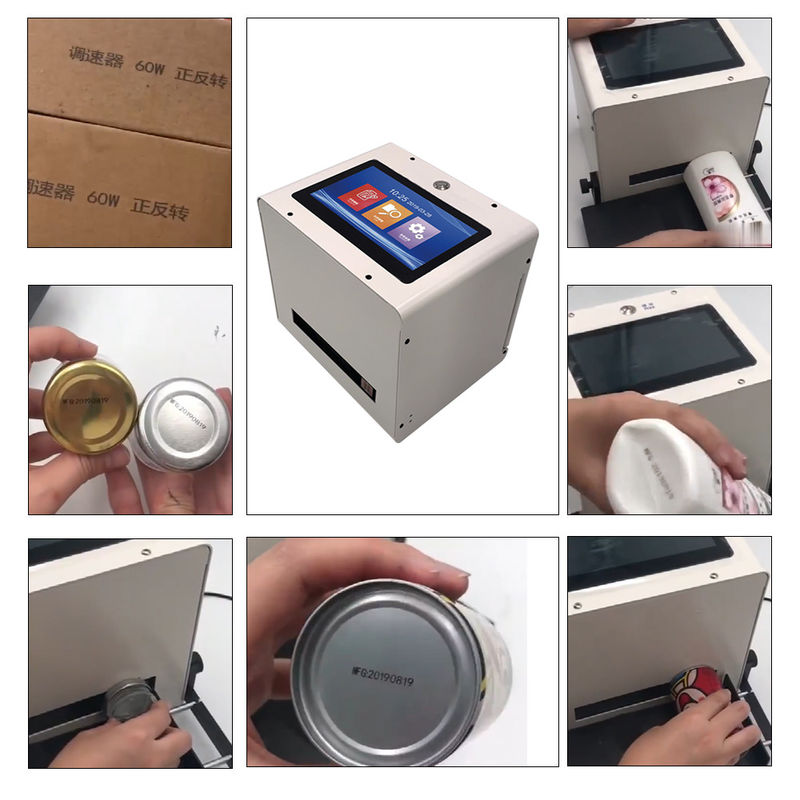

Print samples:

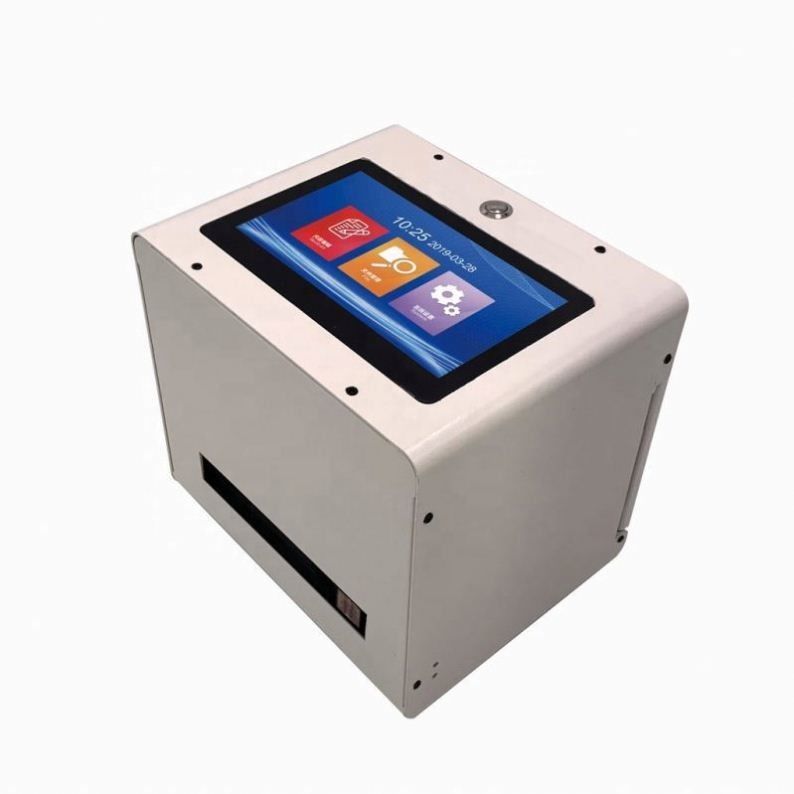

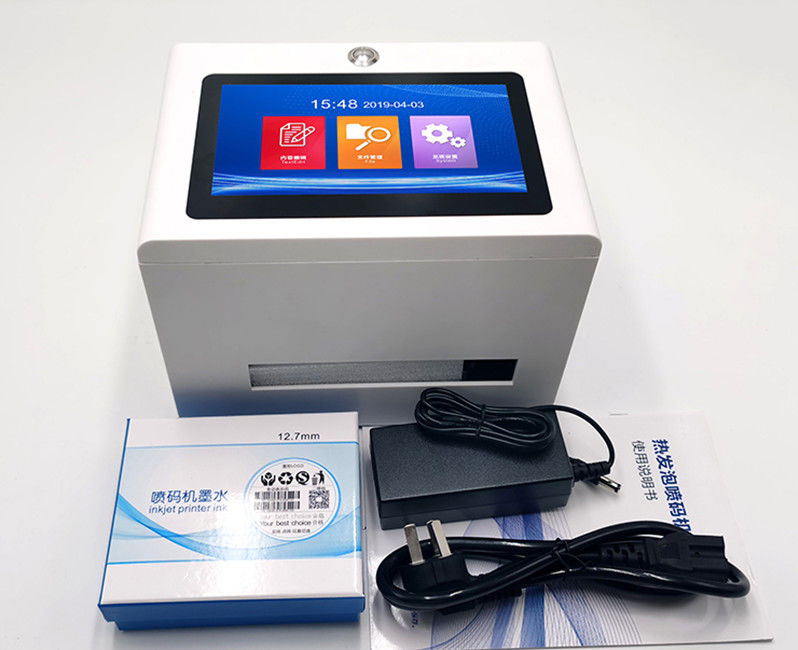

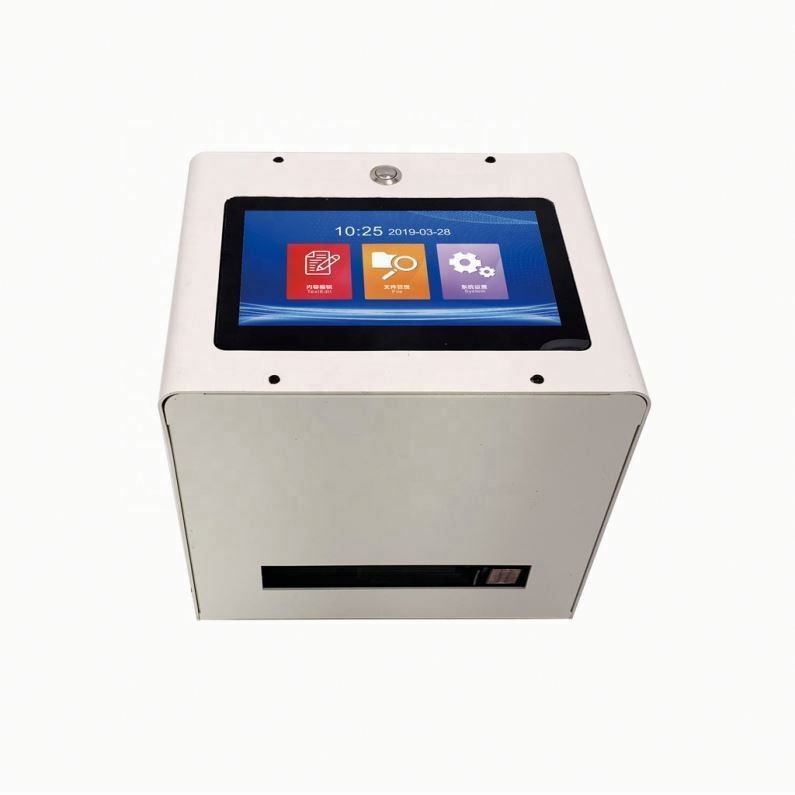

Machine pictures:
